Replacing a FINE Cartridge

When remaining ink cautions or errors occur, the message will appear on the LCD to inform you of the error. Take appropriate action according to the message.

Note

Replacing Procedure

When you need to replace a FINE cartridge, follow the procedure below.

  1. Make sure that the power is turned on.

  2. Open the front cover (A).

    The paper output tray (B) opens.

    Note

    • Remove any paper in the cassette.

  3. Open the paper output cover.

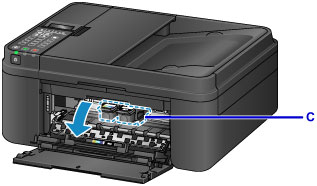

    The FINE cartridge holder (C) moves to the replacement position.

    Caution

    • Do not hold the FINE cartridge holder to stop or move it forcibly. Do not touch the FINE cartridge holder until it stops completely.

    Important

    • The inside of the machine may be stained with ink. Be careful not to stain your hands or clothing when replacing the FINE cartridge. You can easily wipe off the ink from the inside of the machine with tissue paper or the like.
    • Do not touch the metallic parts or other parts inside the machine.
    • If the paper output cover is left open for more than 10 minutes, the FINE cartridge holder may move and the Alarm lamp light. In this case, close the paper output cover, then open it again.

  4. Push down the empty FINE cartridge until it clicks.

    You hear an electronic sound twice.

    Note

    • When you set the alarm to be silent in Sound control of Dev. user settings, the alarm will not beep even if the FINE cartridge is detached.

  5. Remove the FINE cartridge.

    Important

    • Handle the FINE cartridge carefully to avoid staining of clothing or the surrounding area.
    • Discard the empty FINE cartridge according to the local laws and regulations regarding disposal of consumables.

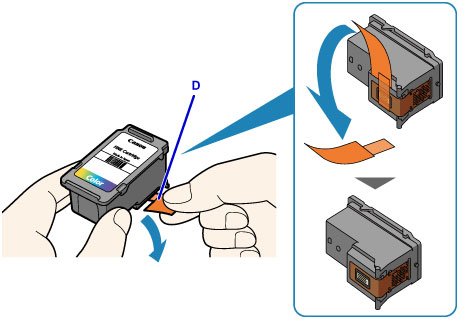

  6. Take a new FINE cartridge out of its package and remove the protective tape (D) gently.

    Important

    • If you shake a FINE cartridge, ink may spill out and stain your hands and the surrounding area. Handle a FINE cartridge carefully.
    • Be careful not to stain your hands and the surrounding area with ink on the removed protective tape.
    • Do not reattach the protective tape once you have removed it. Discard it according to the local laws and regulations regarding disposal of consumables.
    • Do not touch the electrical contacts or print head nozzle on a FINE cartridge. The machine may not print properly if you touch them.

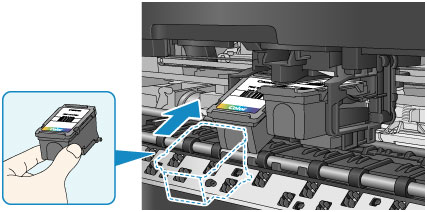

  7. Insert the new FINE cartridge at a slant into the FINE cartridge holder.

    The color FINE cartridge should be installed into the left slot and the black FINE cartridge should be installed into the right slot.

    Important

    • Insert the FINE cartridge gently so that it does not hit the electrical contacts on the FINE cartridge holder.

  8. Push the FINE cartridge in and up firmly until it snaps into place.

    You hear an electronic sound once.

    Important

    • Check if the FINE cartridge is installed correctly.

    • The machine cannot print unless both the color FINE cartridge and black FINE cartridge are installed. Be sure to install both cartridges.

    Note

    • When you set the alarm to be silent in Sound control of Dev. user settings, the alarm will not beep even if the FINE cartridge is attached.

  9. Close the paper output cover.

    Note

    • If the error message appears after the paper output cover is closed, take appropriate action.

    • When you start printing after replacing the FINE cartridge, the machine starts cleaning the print head automatically. Do not perform any other operations until the machine completes the cleaning of the print head.
    • If the print head is out of alignment, as indicated by misaligned printed ruled lines or similar symptoms, align the print head.
    • The machine may make noise during operation.

Notes on FINE cartridges

Important

  • Do not touch the electrical contacts (A) or print head nozzle (B) on a FINE cartridge. The machine may not print properly if you touch them.

  • If you remove a FINE cartridge, replace it immediately. Do not leave the machine with the FINE cartridge removed.

  • Use a new FINE cartridge for replacement. Installing a used FINE cartridge may cause the nozzles to clog.

    Furthermore, with such a FINE cartridge, the machine will not be able to inform you when to replace the FINE cartridge properly.

  • Once a FINE cartridge has been installed, do not remove it from the machine and leave it out in the open. This will cause the FINE cartridge to dry out, and the machine may not operate properly when it is reinstalled. To maintain optimal printing quality, use a FINE cartridge within six months of first use.

Note

  • If a FINE cartridge runs out of ink, you can print with either color or black FINE cartridge, in whichever ink remains, only for a while. However the print quality may be reduced compared to when printing with both cartridges. We recommend to use a new FINE cartridge in order to obtain optimum qualities.

    Even when printing with one ink only, print with leaving the empty FINE cartridge installed. If either of the color FINE cartridge or black FINE cartridge is not installed, an error occurs and the machine cannot print.

    For information on how to configure this setting, see Setting the Ink Cartridge to be Used.

  • Color ink may be consumed even when printing a black-and-white document or when black-and-white printing is specified.

    Both color ink and black ink are also consumed in the standard cleaning and deep cleaning of the print head, which may be necessary to maintain the performance of the machine. When ink runs out, replace the FINE cartridge immediately with a new one.
